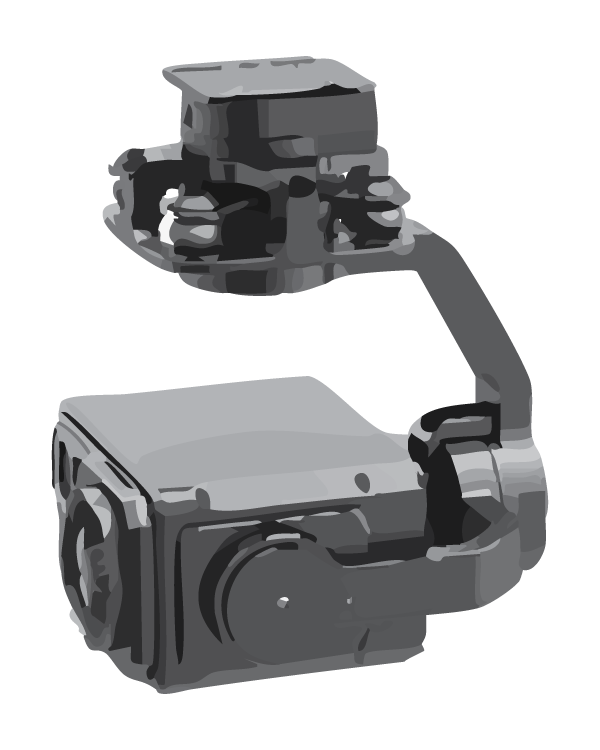

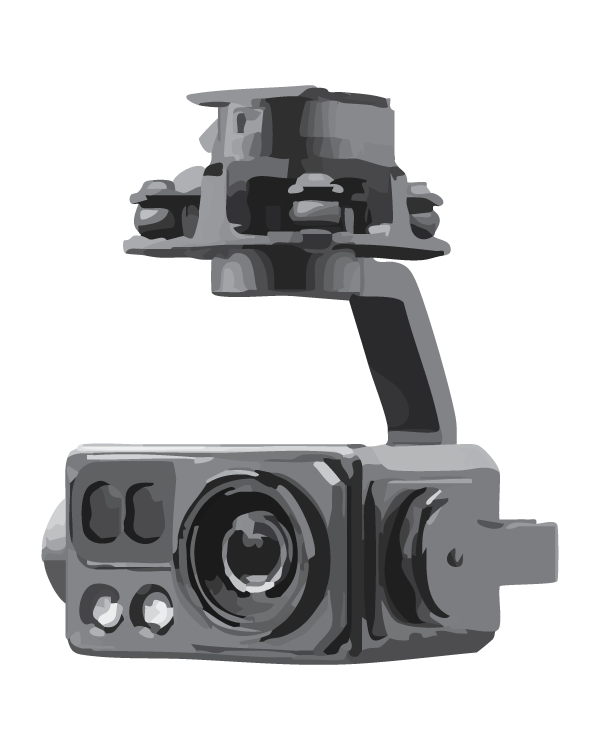

IRIS 30AI

The IRIS 30AI is an advanced, high-accuracy 3-axis gimbal equipped with a 2.07M pixel with 360x hybrid zoom camera (30X Optical and 12X Digital), capable of capturing scenes from hundreds of meters away. When combined with a laser lighting module and starlight-level night vision, the IRIS 30AI ensures clear imagery, even in complete darkness. The integrated laser range finder allows precise location and distance measurements, enhancing operational efficiency, while its AI-powered multi-object detection and tracking function automatically identifies and tracks persons or vehicles in the field of view.

Designed for versatility, the IRIS 30AI can be mounted tool-free onto unmanned aerial vehicles via its quick-release port. It is ideal for a wide range of industries, including firefighting, forest police, public security, search and rescue, and environmental protection, offering reliable and real-time situational awareness in critical missions.

IRIS 30AI
Specifications Dimensions 150 x 144 x 172mm
Weight 870g
Operating Voltage 20~53V
Mounting Upward/Downward
Operating Temperature Minus 20℃~60℃
Storage Temperature Minus 20℃~70℃
Operating Humidity ≤ 85%RH (Non-condensing)
Protection Rating IP43
Control Method UART / S.BUS / TCP
Gimbal Gimbal Type 3-axis Mechanical Stabilization
Angular Accuracy ±0.01°
Controllable Range Pitch: -120°~+60°, Yaw: ±360° constantly
Zoom Camera Image Sensor 1/2.8〞CMOS; Effective Pixels: 2.07M
Lens Focal Length: 4.3~129mm
HFOV: 63.7°~ 2.3°
VFOV: 40°~ 1.4°
DFOV: 52.1°~ 2.8°
Resolution
Optical Zoom Rate 30x
Equivalent Digital Zoom Rate 12x
DRI (EN62676-4:2015) Detection: Person: 1947.1m; Vehicle: 2559.1m
Identification: Person: 389.4m; Vehicle: 511.8m
Recognition: Person: 194.7m; Vehicle: 255.9m
Image & Video Image Format JPEG
Maximum Image Resolution 1920 x 1080
Video Format MP4
EXIF NA
Output Video Resolution 1080P @ 30fps
Stream Encode Format H.264, H.265
Stream Network Protocol RTSP, UDP
Laser Lighting Module Wavelength 850±10nm
Laser Power 0.8W x2
Beam Angle 8° + 30°
Effective Illumination Distance ≤200m
Laser Safety Class 3B (IEC 60825-1:2014)
Laser Range Finder Wavelength 905nm
Max Laser Power 1mW
Beam Angle 2.5m rad
Laser Safety Class 1M (IEC 60825-1: 2014)
Measurement Accuracy ±0.3m(<300m) / ±1.0m(>300m)
Measurement Range 5-1800m (ϕ12m vertical surface with 20% reflectivity)
Storage Supported SD Cards TF card with a capacity of up to 128GB
